Brand Name : Huahai Laser
Model Number : HB-HM03P/HM05P/HM07P/HM10P
Certification : ROHS CE FDA
Place of Origin : CHINA Made
MOQ : One set
Price : Negotiable
Payment Terms : T/T, D/P, L/C, Western Union
Supply Ability : 100 sets per month
Delivery Time : 10-12 workdays
Packaging Details : Wooden boxes
Power : 3W/5W/7W/10W
Material : PVC PP PET PC PE Metal
Product warranty : One year
Working mode : Air cooling/Water cooling
UV Laser Marking Machine 3W 5W 7W 10W Marking Metal And Plastic With Portable , Desktop , Sealed Type
Application:
Main used for all kinds of glass, Charger shell of Samsung and Iphone, earphone, TFT, LCD, plasma screens, textiles, thin ceramic Silicon, IC Crystal, Sapphire, polymers, drug, cosmetic, polymer materials such as wire, bottles(boxes)surface marking, and micro-holes
Advantages :
1. UV laser with cooling ,assure stable performance.
2. UV laser temperature control PID with high precision.
3. Choose a variety of modes for first pulse suppression, to achieve the best effect.
4. UV laser can offer a variety of different average laser power and pulse width, fit for different processing requirement.
5. Excellent beam quality is suitable for all types of fine marking;
Features:
1) 355nm UV wave band and cold light source;
2) Narrow pulse width and high peak power;
3) It is most suitable for sensitive material marking processing work;
4) Air cooled maintenance-free design, which is long working life;
5) The laser acts directly on the molecular chain of the material which is maximum avoidance of heat effect.
Main feild :
Material | UV lasre Marking machine | Material | UV laser marking machine |
Craft gifts | √ | shell plate | √ |
leather garments | √ | Keyboard | √ |
advertising signs | √ | PCB | √ |
model making | √ | Glass | √ |
food packaging | √ | electronic components | √ |
electronic components | √ | Lamps | √ |
pharmaceutical packaging | √ | Silicon | √ |
medicine packaging | √ | Liquid crystal glass | √ |
Parameters:
Machine model | 3W/5W | 7W/10W | |
Wavelength(nm) | 355 | ||
Pulse repetition rate(kHz) | 20-100 | 50-100 | |
Pulse Width(ns) | <20ns O30KHZ | <25ns@10KHZ | |
Average Power Stability | ±2%over8 hours | ||
Pulse-to- Pulse instability | < 3% rms | ||
Spatial Mode | TEMOO(M2 <1.3) | ||
Beam Divergence | <2 mrad(Full Angle) | ||
1/e2 Beam Diameter | 0.6±0.1mm | ||
Beam Roundness | >90% | ||
Pointing stability | <50urad | ||
Polarization Direction | Horizontal | ||
Polarization Ratio | 100:01:00 | ||
Cooling | air-cooling | water-cooling | |
Ambient Temperature(℃) | 15-30 | ||
Storage Temperature(℃) | -60 | ||
Relative humidity | 10%-80%(non-condensing) | ||
Warm-up Time(mins) | <10 | ||
Operating Voltage(V) | 90-260 |

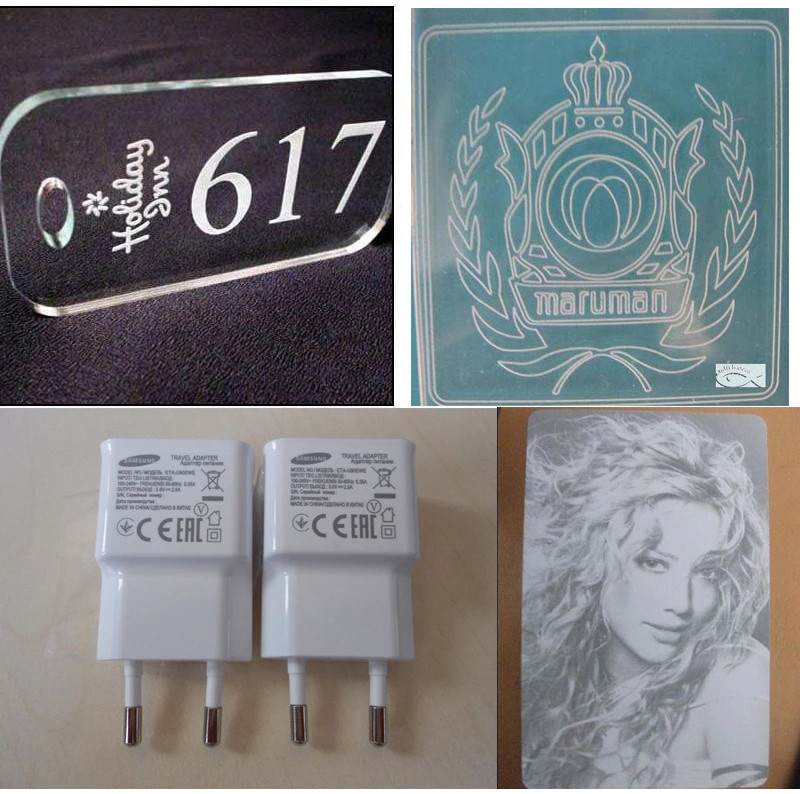

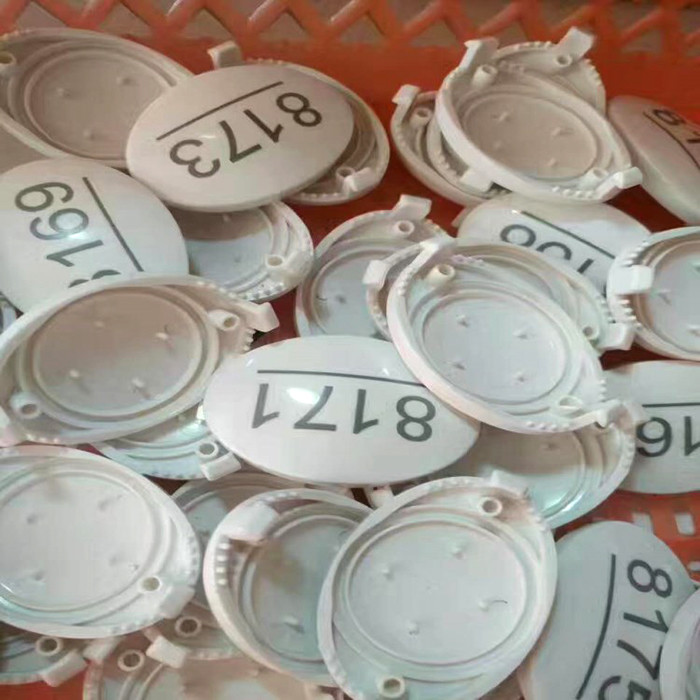

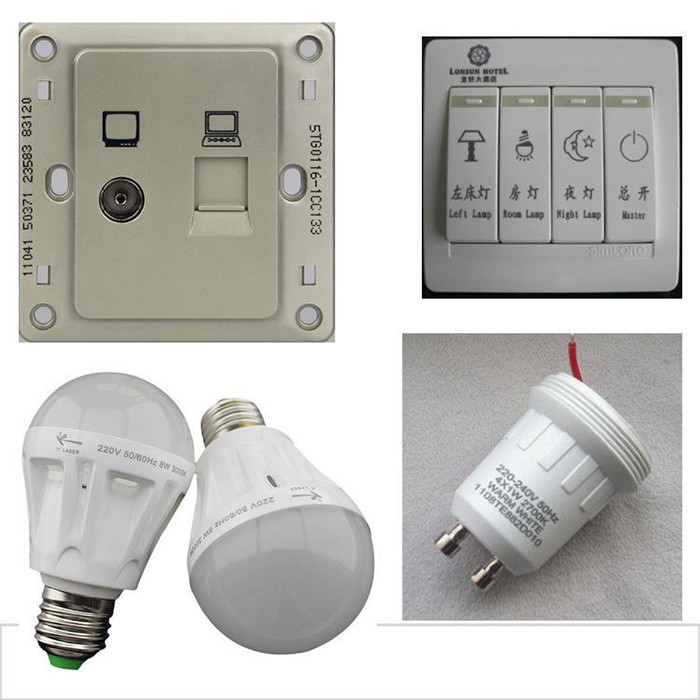

Samples :
![]() |

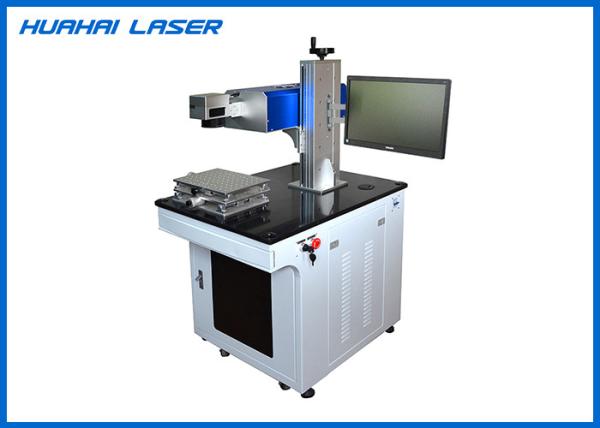

Ultraviolet Laser Source Industrial Laser Marking Machine Low Power Consumption Images |
