Air Cooling 355nm Glass Plastic Metal 3W 5W UV Laser Marking Engraving Machine
Product Application
Mainly based on its unique low-power laser beam. It is especially suitable for the high-end market of ultra-fine processing. The surfaces of bottles for cosmetics, pharmaceuticals, food and other high-molecular materials are marked with fine effects and clear and firm markings. Better than ink coding and no pollution; flexible pcb board marking, dicing; silicon wafer micro hole, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glass surface punching, metal surface coating marking, Plastic buttons, electronic components, gifts, communications equipment, building materials, and so on.
Electronic components, integrated chips, electrical appliances, communication equipment, tools, precision machinery, frames, watches and clocks, auto parts, crystal glass marking, plastic cases ETC.
Product advantages
It conforms to European CE standards and is equipped with high-speed scanning galvanometer. It has high precision and high speed and can replace manual sand blasting. The software control system is used for Windows interface. It supports multiple file formats including Al, JPG, CDR, BMP and so on. Automatic marking, easy to operate. DEM and wholesale.
Main features
1, UV laser with stable water-cooling.
2, UV laser temperature control PID with high precision.
3, Choose a variety of modes for first pulse suppression, to achieve the best inhibitory effect.
4, UV laser can offer a variety of different average laser power and pulse width, fit for different processing requirement.
Technical Parameters
| Machine model | HM03/05 | HM10/15 |
| Wavelength(nm) | 355 |
| Pulse repetition rate(kHz) | 20-100 | 50-100 |
| Pulse Width(ns) | <20ns O30KHZ | <25ns@10KHZ |
| Average Power(W) | 2.0-3.0@30kHz | 4.0-5.0@40kHz | 7.0-8.0@50kHz |
| Average Power Stability | ±2%over8 hours |
| Pulse-to- Pulse instability | < 3% rms |
| Spatial Mode | TEMOO(M2 <1.3) |
| Beam Divergence | <2 mrad(Full Angle) |
| 1/e2 Beam Diameter | 0.6±0.1mm |
| Beam Roundness | >90% |
| Pointing stability | <50urad |
| Polarization Direction | Horizontal |
| Polarization Ratio | 100:1 |
| Cooling | air-cooling | water-cooling |
| Ambient Temperature(℃) | 15-30 |
| Storage Temperature(℃) | -10-50 |
| Relative humidity | 10%-80%(non-condensing) |
| Warm-up Time(mins) | <10 |
| Operating Voltage(V) | 90-260 |
| Warranty | 12months | 12 months |
| Marking depth | 0.5mm |
| Graphic format supported | AI ,PLT ,BMP,JGP,PNG,DXF, etc. |

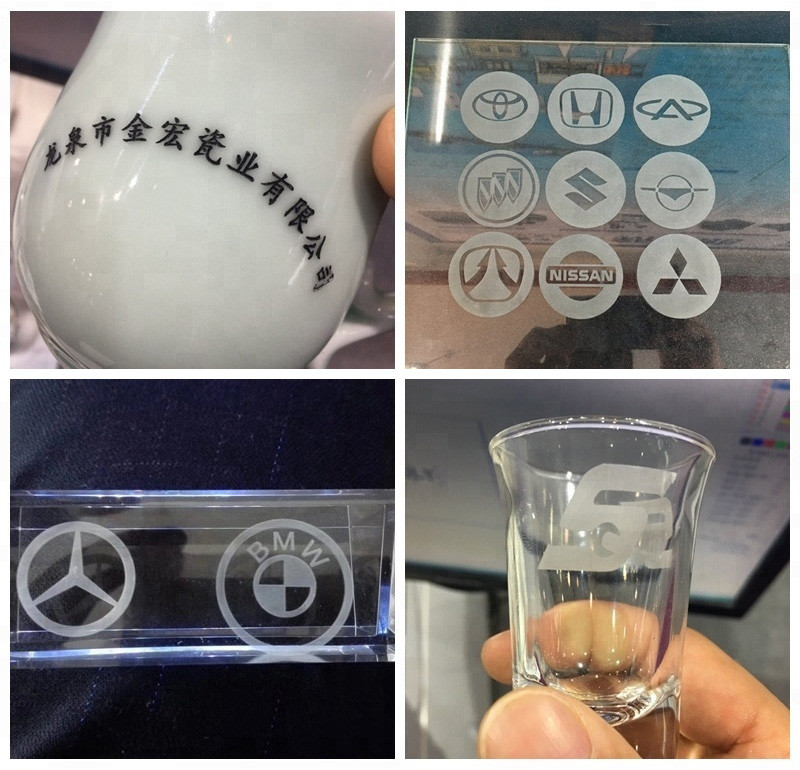

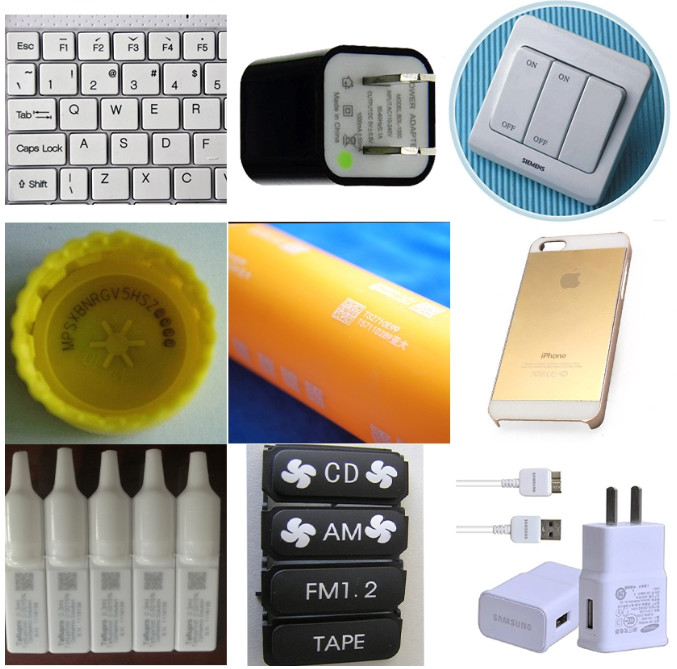

Samples
Our service
1) Free Pre-Sales Consulting / Free Sample Marking
2) Strict Quality Control of Production
3) 5-7 Days Quick Delivery
4) 1 Year Quality Guarantee
5) 12 hours Quick Feedback & After-Sales Service
6) Quick Back-up Parts Available & Technical Assistance
7) Free Training Service
