3W 5W UV Portable Laser Marker UV Laser Marking Machine for Plastic Security Seals
Product Introduction:
1. UV laser is a kind of cold light, mainly used in super precise marking and engraving, particularly suitable for food,pharmaceutical packaging material marking, micro punching, glass high-speed dividing, silicon wafer complex graphics cutting, etc.
2. Without heat effect, the effect of laser marking and cutting is precise, smooth and steep. Except copper, 355nm UV laser could be absorbed by many materials, so it is suitable for manufacture more material type.
3. Adopting doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.
Products Advantages:
- This portable UV laser marker, the size is small, take a small space, and easy to move;
- UV laser , cold marking , laser beam more gentle , mark more delicate and clear ;
- High-speed galvanometer scanning with excellent performance of servo motors, marking high speed high accuracy;
- Industrial control computer strong anti-interference, ensure the long-term stability of the industrial environment; Powerful, friendly interface control software, easy to master, improve the work efficiency.
Specifications:
| Model | HM03P/HM05P/HM07P |
| Wavelength | 355nm |
| Laser output power | ≥3W |
| Pulse width | ≤18ns |
| frequency of laser | 0-100kHz |
| Standard engraving range | 110mm×110mm |
| Repeating precision | ±0.005mm |
| Minimal linear Width | ≤0.01mm |
| Marking speed | 7000mm/s |
| Electrical Power | 220V/110V |
| Cooling system | Air cooling |
| UV Laser source | China JPT laser or
USA imported advanced OptoWave |
| Galvo | Top brand made in China |
| Control card and software | EZCAD Control card and software |
| Lens | Imported one |
| Applied material | Plastic , glass , metal |
Application Industries:
The laser machine employs the imported UV laser and imported high-speed galvanometer as its central devices. It is widely used for metal or nonmetal's surface marking to make up for the lack of IR Laser'sprocessing ability. The main applicable materials are electronic products shell marking, battery charger,data line, mobile phone, computer fitting marking, electronic components, jewellery, horologe marking,PCB, FPC marking and cutting, Glass product marking, metal, alloys marking and plastics material's marking, etc.

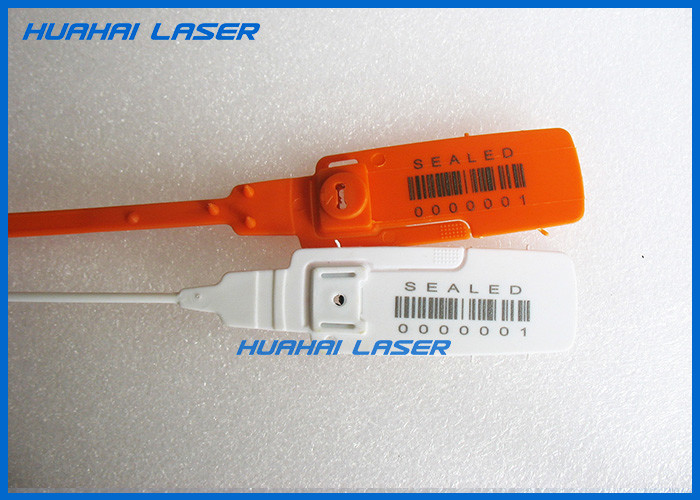

Samples:
