UV Laser Marking Machine for metal and plastic with CE and FDA For Precision Marking
Advantages :
Focused UV light spot size is small , heat affected area during processing is mimimum,So it is used inultra fine and special material’s marking.
Since UV laser did not produce any thermal effects and burning issues, the result of the marking is precise , smooth and steep.
Features :
1. Nice laser beam quality, smaller focused spot size, ultra-fine marking, and the minimum character can up to 0.2mm.
2. 355nm outgoing wavelength makes it small heat-affected area without thermal effects and burning problem.
3. Motorized up down table, auto focusing, and rotating functions are optional.
4. High speed and high precision.
5. Stable working performance without consumable material, small size and easy operation.
Machine advantages :
1. UV laser ,cold marking , laser beam more gentle , mark more delicate and clear ;
2. High-speed galvanometer scanning with excellent performance of servo motors, marking high speed high accuracy;
3. Industrial control computer strong anti-interference, ensure the long-term stability of the industrial environment; Powerful, friendly interface control software, easy to master, improve the work efficiency.
Parameters :
| Laser type | UV laser type |
| Working mode | Cool processing |
| Model | HB-HM03P/HM05P/HM07P/HM10P |
| Wavelength | 355nm |
| Power | 2W /3W/ 5W /7W/ 10W |
| Laser output power | ≥2W /3W/ 5W /7W/ 10W |
| Pulse width | ≤18ns |
| frequency of laser | 0-100kHz |
| Standard engraving range | 110mm×110mm/175*175 mm |
| Repeating precision | ±0.005mm |
| Minimal linear Width | ≤0.01mm |
| Marking speed | 7000mm/s |
| Electrical Power | 220V |
| Cooling system | Air cooling/Water cooling |
| UV Laser source | China RFH laser /USA Advanced optowave laser source /Singapore |
| Galvo | Top brand made in China |
| Control card and software | Taiwan Markingmate |
| Lens | Imported one |
Principle:
Low Power DPSS UV Lasers is featured with compact structure with extremely convenient installation and debugging. They have adopted the built-in laser diode technology to avoid the effect of fiber shaking on output laser. Besides, the beam quality is excellent enough to ensure the stability and reliability for mass production, which can meet the special manufacturing and processing demand in harsh industrial working condition.

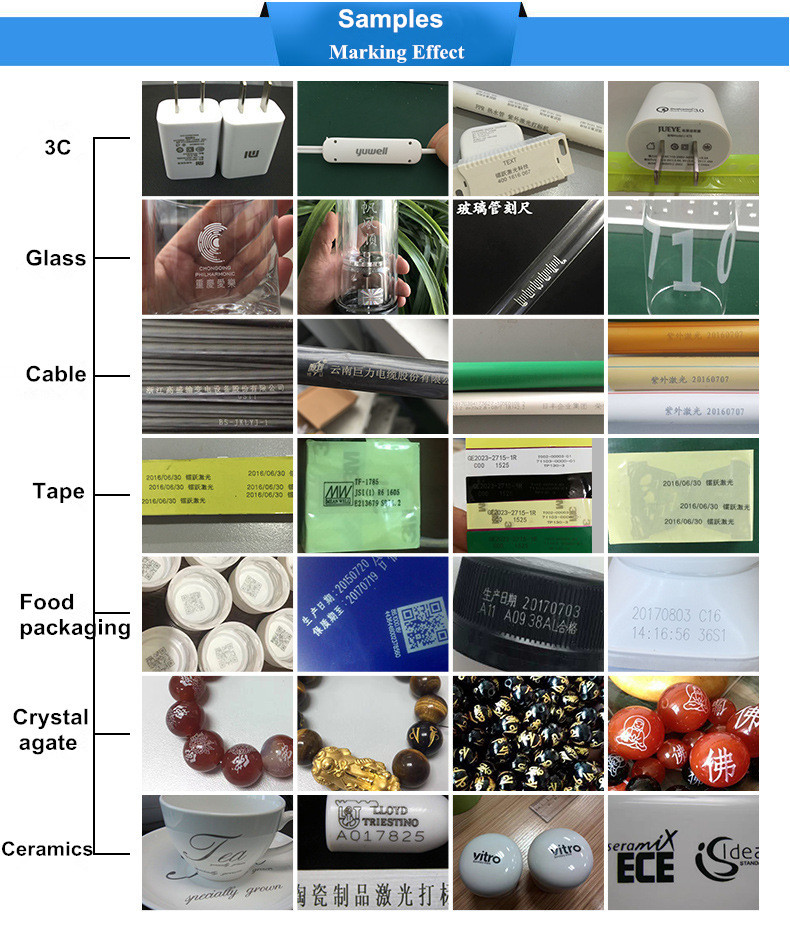

Samples:
