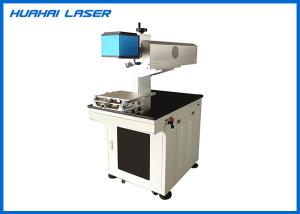

Air Cooling CO2 Laser Marking Machine , Desktop Laser Marking Machine
The machine can be widely used in food and beverage, medicine, tobacco, leather, packaging, building materials, lighting, cosmetics, electronic components and other industries in the product or product packaging marking process
Features:
1, high speed.
2, small volume, light weight.
3, no consumables, low-power, power consumption is less than 500 w, 5 years free maintenance.
4, air cooled completely, do not need water cooling machine, reduce energy consumption.
5, and is not affected by bad environment and temperature changes, power in the state of the battery, car cigarette lighter can be used for work.
6, the product of depreciation cost can be greatly reduced, can fully satisfy the clients, stable production.
Technical Parameters:
| Laser Power | 70W |
| Optional Marking Area | 50*50mm/110*110mm/175*175mm |
| Laser Wavelength | 10.64um/10.2um/9.3um |
| Response Time | 0.5ms |
| Marking depth | 0.02-1mm |
| Marking speed | 12000mm/S |
| Marking lines | 1-10 lines(in the marking area) |
| Minimum line width | 0.2mm |
| Minimum character | 0.5mm |
| Repeatability accuracy | ±0.002mm |
| Resolution ratio | 0.1mm |
| Output power | 10%-100% |
| Output frequency | 5-30KHZ |
| Humidity range | 45%-75% |
| Cooling Method | Water-cooling |
| Gross Weight | 68kg |
| Marking content | Text, pattern, date, bar code, etc |
| Operation system | Microsoft Windows XP or Windows 2000 |
| Control software | EZCAD control software |
| Graphic format supported | BMP, JPG, GIF, tga, PNG, TIF, ai, dxf, dst, plt, etc. |
| Unit power | ≤650W |
| Operation temperature | 5°C-45°C |
| Relative moisture | ≤ 90%, no fog |
| Supply Voltage | 220V/50Hz/60Hz |
Application:
Suitable for marking the surface of various non-metallic materials, such as medicine, cosmetics, plexiglass, ceramics, plastics, rubber leather. Can also be used for laser marking in the electronics industry and various instrument control panels
