30W 50W 60W Fiber type Fly Laser Marking Machine For Flying Marking Metal Plastic Data Code Number
Application :
1. Application Industry: Gold & Silver Jewellery, Sanitary Ware, Foof Packing, Tobacco Products, Medicine Packing, Medical Apparatus and industries, watches & glassware, auto accessories and electronic hardware.
2. Applicable Materials: Gold & Sliver, Stainless Steel, Ceramic, Plastic, Glass, Stone, Leather, Cloth, Bamboo and so on.
3. Typical case: Auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking and etc.
Machine advantage:
1. Excellent beam quality: Marking effect is quite good ,clear ,precise and indelible .
2. Stable performance: It adopts the top brand lasers source all around the world , stable performance, which has long service life . For example ,the fiber laser source service life 100,000hours . And the imported American CO2 RF laser tube service life 50,000hours .
3. Fast marking speed: The fastest speed can achieve 70M/min.
4. No maintenance: Not need any maintenance cost.
5. Easy operations: Friendly software ,powerful function assure you the good using experience.
Marking content:
Code ,numbers , characters ,simple contents .
Parameters:
| Item / Model | YLP-HB-F30/50/60/100W |
| Laser source | Domestic Raycus(Germany IPG/China CAS/JPT Mopa ) |
| Laser power | 20w, 30w, 50w,60w ,100w |
| Laser type | Fiber laser |
| Graphic Format Supported | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
| Marking speed | ≤8000mm/S |
| Max.Marking Depth | ≤0.4mm |
| Laser Wavelength | 1064nm |
| Marking lines | 0.06-0.1mm |
| Minimum line width | 0.06mm |
| Minimum character | 0.15mm |
| Resolution ratio | 0.01mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI |
| Software supported | TAJIMA, CorelDraw, Photoshop, AutoCAD |
| Equipment Dimensions | 420*320*800mm(different model has different size,detailed can be confirmed with sellers) |
| Net Weight: | 150kg (different configuration has small difference) |
| Unit Power | ≤500W |
| Optional Spare Parts | Conveyor table |

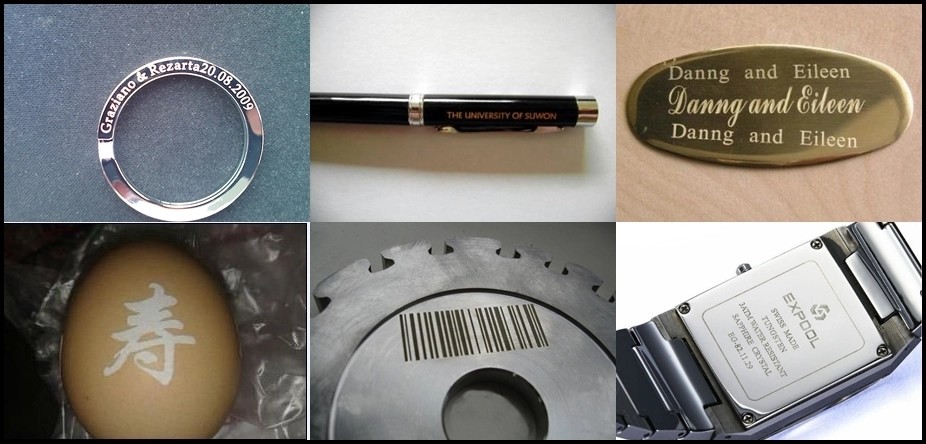

Samples :
