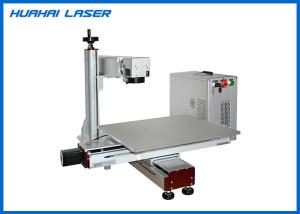

20W 30W 50W Fiber Laser Marking Machine With Xy Table For Big Size Marking
(Model name :YLP-HB20w 30W 50W )
Performance:
Laser marking machine machine is widely for stainless steel marking, carbon steel marking, iron making, aluminum marking, coppermarking, anodized and coated material materials marking, and not-metallic such as nylon marking, ABS/PVC/PC board, hard plastic marking, rubber marking, resin marking, ceramic marking etc., in the industries of electronic and communication products, IC products, electric lines, cable computer computer components and electric appliance, precision parts, hardware tools, instrument appliance and so on.
Features:
1. Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery；
2. High Precision: Re-position precision is 0.002mm；
3. High Speed: Imported scanning system makes the scanning speed is up to 7m/s；
4. Easily Operating:Afford the specific marking software based on Windows, You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop；
5. High Reliability: MTBF>100,000 hours；
6. Energy Saving: The efficiency of optic-electrical converting is up to 30%；
7. Low Running Cost: No wearing part. Free maintaining；
8. big size marking : XY moving table for split marking
Specifications
| Purpose |
Marking / engraving |
| Laser source |
Fiber Raycus/IPG/JPT/CAS |
| Laser Wavelength |
1064 nm |
| Laser Output Power |
20W 30W 50W |
| typical Laser Life Span |
100,000hrs |
| Modulation frequency |
20-100kHz |
| Max. Working Speed |
7000mm/s |
| Galvanometer |
Yes |
| Lens |
F-Theta Lens |
| Working Area |
|
| Beam Diameter/Quality |
M2<1.2 |
| Working Area |
70x70mm , 110x110mm((standard),150*150mm and so on |
| Repeatability |
0.01mm |
| Positioning accuracy |
0.01mm |
| Min Line Width |
0.01mm |
| Marking/Cutting Depth |
0.01-0.2mm (depending on material) |
| Control |
|
| Cooling |
Air cooling |
| Power supply |
AC220V, 50/60Hz, 1kVA (110-120V Optional) |
| Controller |
Computer with marking software |
| USB 2.0 Compatible |
YES |
| File Types |
PLT, DXF, AI, DST, BMP, JPG, TIF |
| Max. Operating Time |
24hrs (recommend 1hr cool-down period)
|
