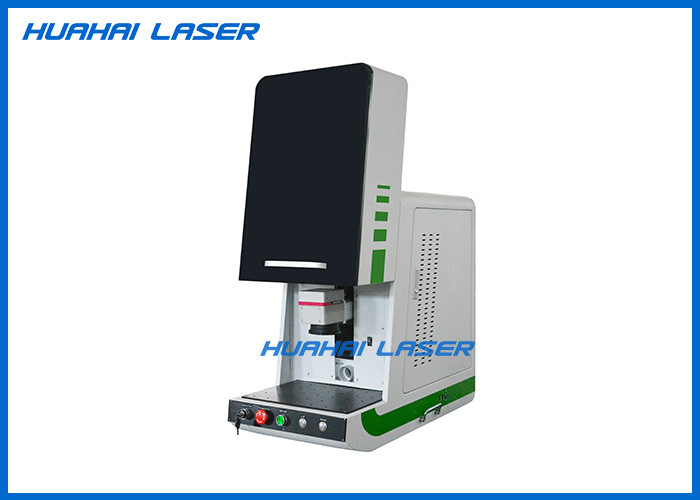

Fiber Laser Marking Machine Desktop sealed type With CE FDA Wants Distributor , OEM Accepted
Safety ,Portability is the top priority of the machine .
Safety door--- It offers life protections for workers !
The sensor besides the door can make that .Only when the door is closed ,the laser will work .
Safety glass---It offers eye protections for workers !
The laser against protective glass offers an extra guard for worker's eyes .
And for this type ,the rotator can be matched .Laptop is with the machine .
Applications:
Jewelry & Acessories : Rings, Pendant, Bracelet,Necklace,Sunglasses,Watches etc.
Electronic Components: Phone,IPAD,Resistors,Capacitors,Chips,Printed Circuit Boards, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Electronics : Iphone, IPAD, Ipod, Keyboard and more standard parts.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons&Rings, Gears, Shafts,Bearings,Clutch,Lights
Handicrafts: Zipper, Key Holder, Souvenir,etc.
Machine advantages:
The machine is ideal for businesses or individuals who are looking for an entry-level fiber laser marking machine, for applications ranging from marking serial number, barcode, and prototyping designs.
One time investment ,at least three to five years machine service life ,low electricity consumption ,no maintainance ,small dimension ,easy to move ,are the most advantages of the machine.
Parameters :
| Type | YLP-HB |
| Power | 20W/30W/50W/60W |
| Laser Brand | China Raycus/Germanay IPG/China JPT |
| Marking Area | 110mm*110mm |
| Optional Marking Area | 200mm*200mm/150mm*150mm/75mm*75mm/175*175mm |
| Marking Depth | ≤0.5mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100,000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling Mode | Air cooling |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Package Dimension | 930*510*880mm |
| Gross weight | 80KG |
| Optional (Not free of charge) | Rotary65mm |
Components :
| No. | MAIN COMPONENTS | SPECIFICATIONS | PLACE OF ORIGIN |
| 1 | LASER | 20/30W/5W/60W/100W FIBER LASER | CHINA MAINLAND/GERMANY/RUSSIA/SINGAPORE |
| | BRAND | Raycus /IPG/JPT |
| 2 | SCANNING GALVANOMETER | SINO | CHINA MAINLAND |
| 3 | POWER SUPPLY | MEANWELL | TAIWAN,CHINA |
| 4 | FILED LENS | F=254MM MARKING AREA OPTIONAL | SINGAPORE |
| 5 | RED LIGHT POSITIONING SYSTEM | 650N | CHINA MAINLAND |
| 6 | MARKING SOFTWARE | EZCAD/MARKINGMATE IN TAIWAN | CHINA MAINLAND/TAIWAN,CHINA |
| 7 | SENSOR | | CHINA MAINLAND |
| 8 | PORTABLE SUPPORT | TWO-DIMENSIONAL MOVABLE, | CHINA MAINLAND |
Other Machine appearance for your choice :
Sample :
