Fiber Laser Source Handheld Laser Welding Machine 1KW 500W 750W For Welding Stainless Steel Carbon Steel
It is the Fiber type ,not the YAG type .
It is with Fiber laser source ,long service life .
No consumable .
Application :
It can weld a wide range of metal, includes the stainless steel, carbon steel, cooper ,aluminum alloy , Zinc plated board, etc .
For example, welding 2mm stainless steel plates, cabinets and other work-pieces.
It has wide field application, includes aerospace, instruments, manufacturing industry, metal processing industry
Advantages:
Adopt integrated structure, that’s its control system, laser system and cooling system are all built-in and integrated.
Handheld holding welding head is easily operated, picking and moving.
Using the fiber laser source .The laser beam quality is quite good, and its output power is stable which can assure the high welding performance.
The machine is with the safety control box, which can control the laser beam only comes out when welding starts.
Using special welding software .It has function of continuous laser beam, and the adjustable
output waveform , which can assure the precious and high-speed welding .
It costs very low working consumption. Using laser machine one hour only consume 1-1.5 degree electricity, and weld all kinds of thin metal plates.
It can weld a wide range of metal, includes the stainless steel, carbon steel, cooper ,aluminum alloy , Zinc plated board.
Compared to old welding methods :
Safety ---It has the laser beam output control .Only when the welding head touches the metal surface , the machine can work .It can meet the CE and FDA safety standard .Level Ⅳ
Low consumption ---Its electricity consumption is only 1-2 degree in one hour .That’s other old method cannot compete.
Performance ---The welding spot is even and the welding surface is very smooth and beautiful .Not need the second process after welding.
Convenience ---Portable handheld welding head is suitable for holding. The machine only have one box, which can be moved easily .No matter how big of your article, it can do the work .
The standard welding head fiber is 5M long , we could offer 10M customized .
Small dimension ---The integrative design makes the machine dimension small .It is suitable for all transportation ways ,includes the express ,by air ,by sea ,by train .
Parameters :
| Machine appearance | | | |
| Model | HB-FW500 | HB-FW750 | HB-FW1000 |
| Max.laser output power | 500W | 750W | 1000W |
| Working mode | Continuous or modulate |
| Laser wavelength | 1070mm |
| Beam quality | M2<1.1 | M2<1.15 | M2<1.2 |
| Standard output laser power | ± 2% | ± 2% | ± 2% |
| Line width | <4nm | <4-5nm | <5nm |
| Power supply | AC220V ±10% 50/60Hz | AC220V ±10% 50/60Hz | AC380V ±10% 50/60Hz |
| Cooling system | Water cooling | Water cooling | Water cooling |
| Straight modulate | 0-5KHZ | 0-5KHZ | 0-5KHZ |
| Whole machine power consumption | 4KW | 5KW | 6KW |

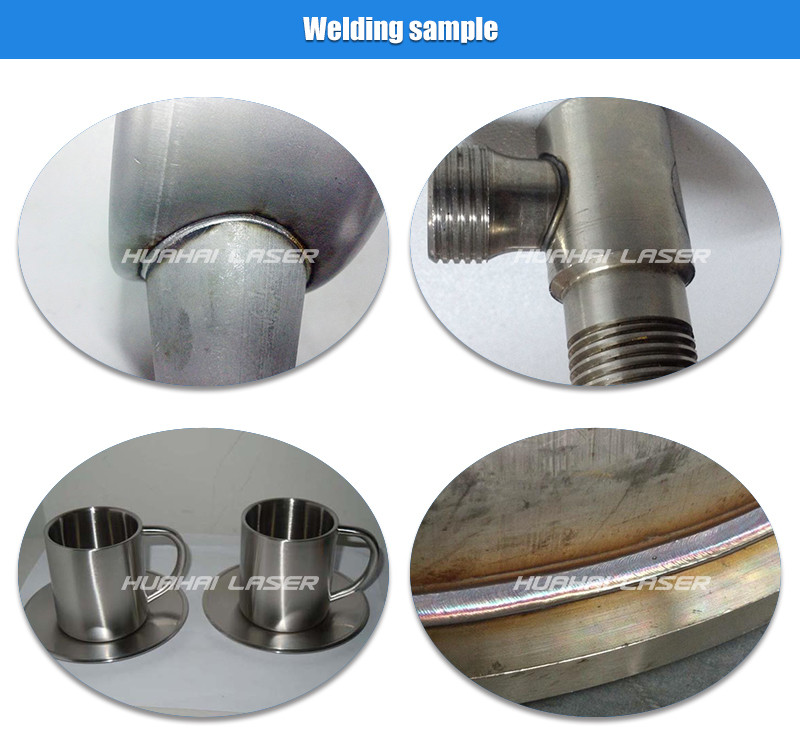

Samples :
