Handheld Portable Trolley Fiber Laser Cleaning Machine Metal Rust Oxide Painting Coating Removal
Product Application
1, Laser cleaning equipment is a new generation of surface cleaning high-tech products.
2, It is very easy to install, manipulate and achieve automate.
3, Easy operation, you only turn on the power and open the device, machine will be cleaned with no chemical reagents, no media, no dust and no water.
4, With the advantage of manual adjustment of the focus, fit curved surface cleaning, good surface cleanliness and so on .
5, Laser cleaning machine can clean the resin of subject surface, oil stains, stains, dirt, rust, coating, paint.
Materials
A Metal surface cleaning
B Removal paint of metal surface
C stains cleaning on the surface
D Surface coating cleaning
E Pre-treatment of welding surface cleaning
F Stone surface cleaning
G Rubber mold residue cleaning
Application
Ship Industry, auto parts, rubber mold, high-end Machine, tire molde track, environmental protection industry and others.
Parameters
| Voltage | Single-phase 220V±10%, 50/60Hz AC |
| Machine power consumption | 800W |
| Placed environment | Flat, no vibration, no impact |
| Working temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameter |
| Average laser power | ≥100W |
| Power adjustment range (%) | 10-100(adjustable) |
| Repeat frequency(KHz) | 50-100(adjustable) |
| Cleaning efficiency(m2/h) | 4 |
| focal length(mm) | 160 |
| Cooling way | Air cooling |
| Mechanical parameters |
| Machine size | 850mm×700mm×880mm |
| Weight | 140Kg |

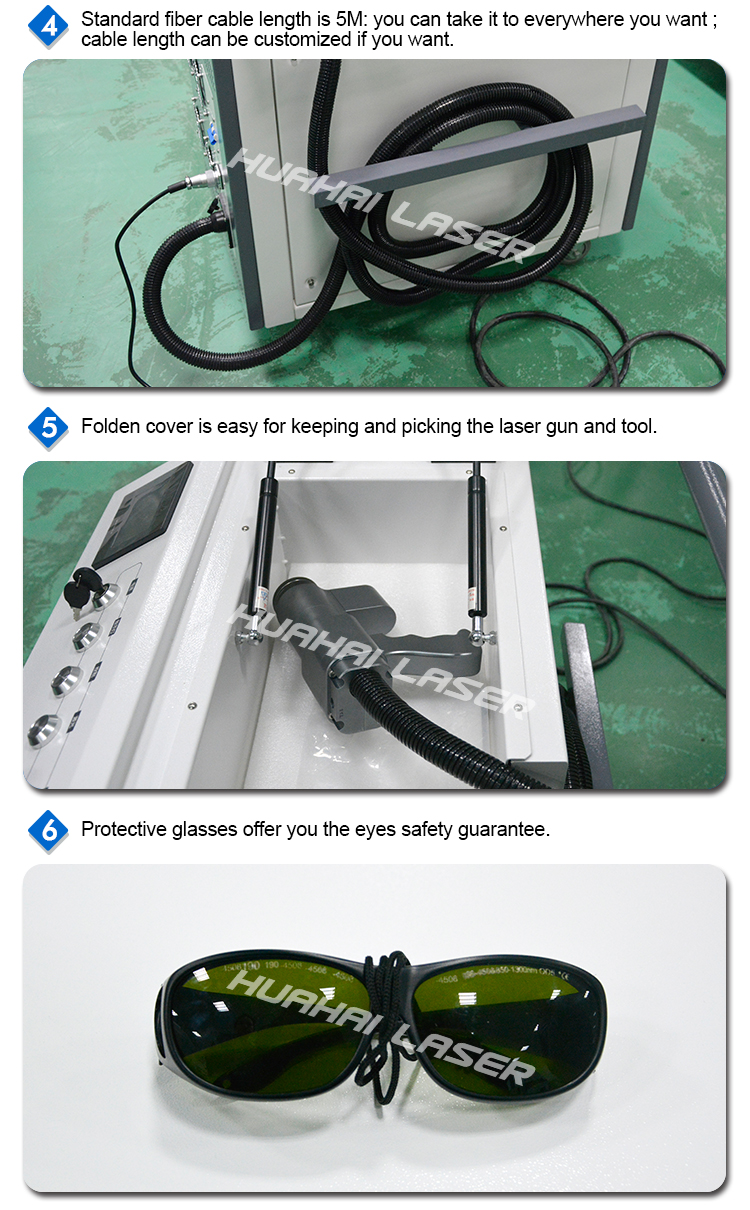

| Fiber length | 5m(Customized accepted) |
| Scanning head weight | 2.5Kg |
| Scanning width | 10-80mm |
| Moving way | Handheld |
| Laser source | Raycus , IPG |
| Laser power | 100w |

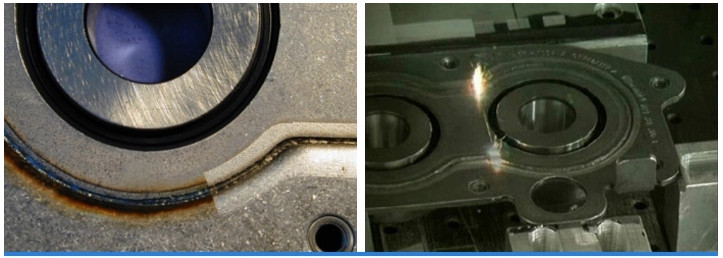

Samples
More machine photos
